Product Description
BEFORE MAKING A PURCHASE
Please note that ALL SALES OF SIGHTS ARE FINAL. No returns or exchanges on sights will be accepted. If purchased item arrives damaged or defective, please contact EOTECH Technical Support to obtain an RMA number
DETAILS

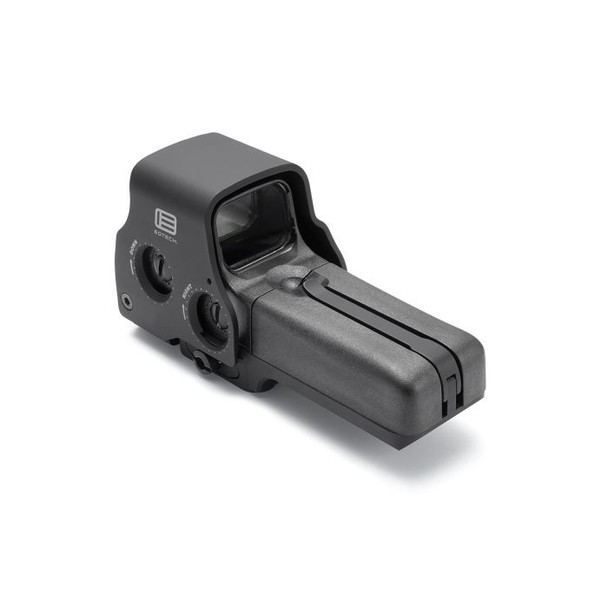

The 518™ HWS delivers all the advantages of our popular 512 and EXPS models, respectively, in one tough unit. With long run life using easy-to-find AA batteries, the quick-detach lever and side control functionality allow for mounting our G33™ Magnifier behind the sight.
BEFORE MAKING A PURCHASE: Please note that ALL SALES OF SIGHTS ARE FINAL. No returns or exchanges on sights will be accepted. If purchased item arrives damaged or defective, please contact EOTECH Technical Support to obtain an RMA number.
EXPORT RESTRICTIONS: Export is strictly prohibited without a valid export license issued by the U.S. Department of State, Office of Defense Trade Controls, prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulations, Parts 120-130.
TECHNICAL SPECIFICATIONS
| NON NIGHT VISION COMPATIBLE | |
| L X W X H | 5.6” x 2” x 2.5” (143 x 51 x 64 mm) |
| WEIGHT | 11.5 oz (325 g) |
| WATER-RESISTANT | 10 ft. (3 m) depth |
| MOUNT | 1” Weaver or MIL-STD-1913 rail |
| BRIGHTNESS | 20 daylight settings |
| POWER SOURCE | 2 x 1.5 V AA batteries Supports CR123, alkaline, or rechargeable |
| BATTERY LIFE | CR123: 2,500 continuous hours at nominal setting 12 at room temperature. Alkaline: 2,200 continuous hours at nominal setting 12 at room temperature. |
| COUNTRY OF ORIGIN | Made in USA |
| WARRANTY | EOTECH guarantees every product to be free from manufacturing defects in material and workmanship under normal use for a period of ten (10) years from the manufacturer’s date or customer’s proof of purchase. See EOTECH's Prestige Warranty details for more information. |
HWS® PERFORMANCE CHARACTERITICS
FOR MOST MODELS
RETICLE OPTIONS
EOTECH’s unique reticle patterns are a critical to delivering fast target acquisition and MOA accuracy at any range. EOTECH reticles feature a 68 MOA ring surrounding a 1 MOA center dot, allowing the shooter to quickly pick up and lock on a target.
 |
Our most popular reticle offered, the 68 MOA ring with 1 MOA dot provides three usable aiming points. The aiming points are based on the following load: .223 cal. 62 gr. 2,900 vel. When using other loads and calibers, the operator will have to establish the ranges associated with the aiming points. When using a shotgun, the 68 MOA ring can be used to represent shot patterns but will vary based on choke and shell selection. For ordering this reticle, the model codes will end in -0. |
 |
Our two-dot reticle pattern can be easily distinguished with or without magnification and offers the benefit of an additional long-range, aiming dot. The aiming points are based on the following load: .223 cal. 62 gr. 2,900 vel. For ordering this reticle, the model codes will end in -2. |
RANGE ESTIMATION WITH UNMAGNIFIED HWS
The standard ring found in most reticles equates to approximately 68" (5'8") at 100 yards.
BRIGHTNESS OPTIONS
The 518™ HWS offers multiple brightness settings with both Standard and Night Vision modes offering quick adjustability to accommodate any shooting situation.
VERSATILITY WITH OTHER WEAPON PLATFORMS
With its advanced holographic technology, the HWS-2-dot reticle solves a number of fire control issues for a host of applications and weapon platforms.
| LOAD | CENTER DOT
FIRST ZERO |
CENTER DOT
SECOND ZERO |
SECOND DOT
ZERO |
BOTTOM OF CIRCLE |
| .223 CAL. 62 GR., 2,900 VEL. | 50 Yards |
200 Yards | 500 Yards | 7 Yards |
| .44 MAG. 240 GR., 1,300 VEL. | 25 Yards | 50 Yards | 165 Yards | 165 Yards |
| 12 GAUGE. 385 GR., 1,850 VEL. | 25 Yards | 100 Yards | 250 Yards | 250 Yards |
| .50 CAL. BLACK POWDER 350 GR., 1,850 | 25 Yards | 100 Yards | 250 Yards | 250 Yards |
