Product Description
DETAILS

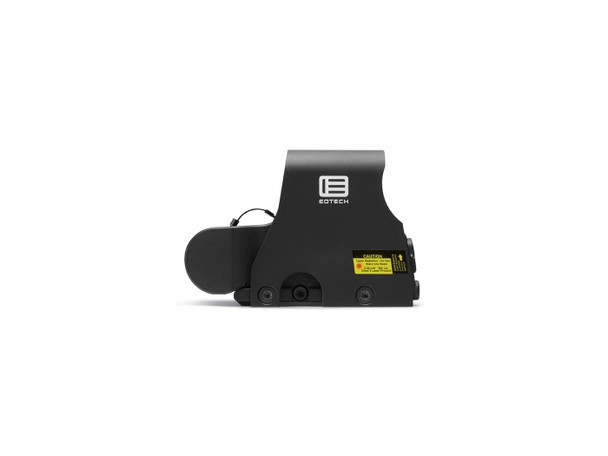

Get more real estate on your rail for more mission-ready options with our compact Model XPS3™ HWS, our shortest and lightest HWS night vision compatible sight. Powered by a single CR123 battery, the water-resistant XPS leaves you plenty of room for rear iron sights, magnifiers, or night vision devices.
BEFORE MAKING A PURCHASE: Please note that ALL SALES OF SIGHTS ARE FINAL. No returns or exchanges on sights will be accepted. If purchased item arrives damaged or defective, please contact EOTECH Technical Support to obtain an RMA number.
EXPORT RESTRICTIONS: Export is strictly prohibited without a valid export license issued by the U.S. Department of State, Office of Defense Trade Controls, prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulations, Parts 120-130.
TECHNICAL SPECIFICATIONS
| NIGHT VISION COMPATIBLE | |
| L X W X H | 3.8” x 2.1” x 2.5” (97 x 54 x 64 mm) |
| WEIGHT | 9.0 oz (255 g) |
| WATER-RESISTANT | 33 ft. (10 m) depth |
| MOUNT | 1” Weaver or MIL-STD-1913 rail |
| BRIGHTNESS | 20 daylight settings 10 additional settings for Gen I through III+ night vision devices |
| POWER SOURCE | 1 x CR123 battery |
| BATTERY LIFE | 1,000 continuous hours at nominal setting 12 at room temperature. |
| COUNTRY OF ORIGIN | Made in USA |
| WARRANTY | EOTECH guarantees every product to be free from manufacturing defects in material and workmanship under normal use for a period of ten (10) years from the manufacturer’s date or customer’s proof of purchase. See EOTECH's Prestige Warranty details for more information. |
HWS® PERFORMANCE CHARACTERITICS
FOR MOST MODELS
RETICLE OPTIONS
EOTECH’s unique reticle patterns are a critical to delivering fast target acquisition and MOA accuracy at any range. EOTECH reticles feature a 68 MOA ring surrounding a 1 MOA center dot allowing the shooter to quickly pick up and lock on a target.
 |
Our most popular reticle offered, the 68 MOA ring with 1 MOA dot provides three usable aiming points. The aiming points above are based on the following load: .223 cal. 62 gr. 2,900 vel.
When using other loads and calibers, the operator will have to establish the ranges associated with the aiming points. When using a shotgun, the 68 MOA ring can be used to represent shot patterns but will vary based on choke and shell selection. For ordering this reticle, the model codes will end in -0. |
 |
Our two-dot reticle pattern can be easily distinguished with or without magnification and offers the benefit of an additional long-range, aiming dot. The aiming points above are based on the following load: .223 cal. 62 gr. 2,900 vel. For ordering this reticle, the model codes will end in -2. |
RANGE ESTIMATION WITH UNMAGNIFIED HWS
The standard ring found in most reticles equates to approximately 68" (5'8") at 100 yards.
BRIGHTNESS OPTIONS
The XPS3™ HWS offers multiple brightness settings with both Standard and Night Vision modes offering quick adjustability to accommodate any shooting situation.
VERSATILITY WITH OTHER WEAPON PLATFORMS
With its advanced holographic technology, the HWS-2-dot reticle solves a number of fire control issues for a host of applications and weapon platforms.
| LOAD | CENTER DOT
FIRST ZERO |
CENTER DOT
SECOND ZERO |
SECOND DOT
ZERO |
BOTTOM OF CIRCLE |
| .223 CAL. 62 GR., 2,900 VEL. | 50 Yards |
200 Yards | 500 Yards | 7 Yards |
| .44 MAG. 240 GR., 1,300 VEL. | 25 Yards | 50 Yards | 165 Yards | 165 Yards |
| 12 GAUGE. 385 GR., 1,850 VEL. | 25 Yards | 100 Yards | 250 Yards | 250 Yards |
| .50 CAL. BLACK POWDER 350 GR., 1,850 | 25 Yards | 100 Yards | 250 Yards | 250 Yards |
